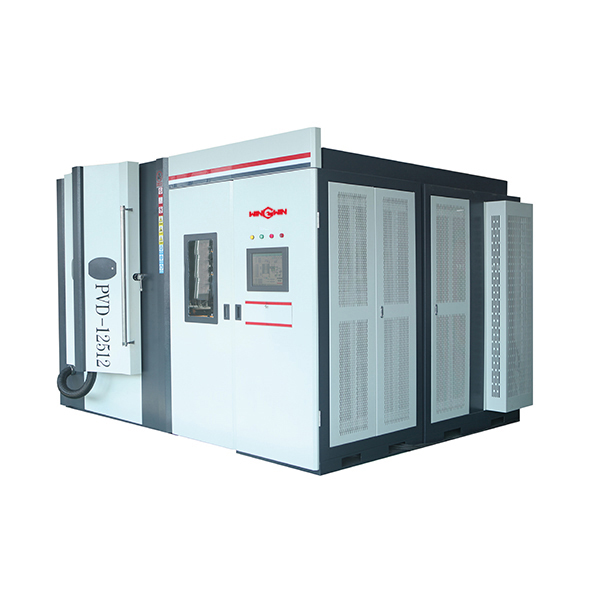

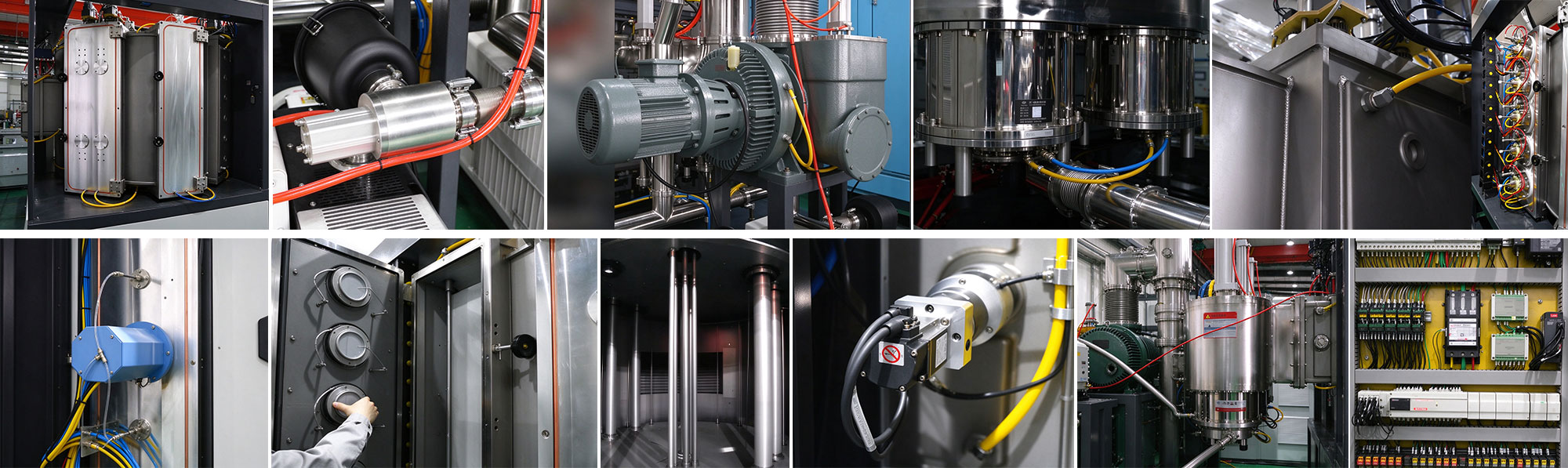

PVD12512 Decorative Coating Equipment

1. Vacuum Chamber Volume: φ1250*1200;
2. Workstations: 16 or 18, workpiece rotation diameter 160mm;
3. Targets and Arcs: Universal interface design, can be configured as needed
4. Recommended Configuration: IP Black model with 4 pairs of 70 targets + 10 arc targets or IP Gold model with 1 pair of φ100 targets + 2 flat targets + 10 arc targets.

Product Description:

No.	Parameter	PVD12512	PVD1688
1	Vacuum chamber volume	φ1250 × 1200 mm	φ1688 × 1200 mm
2	Workstations / positions	16 or 18 positions; max workpiece rotation diameter: 160 mm	20 / 24 / 28 positions, or as required; max workpiece rotation diameter: 180 mm
3	Recommended configuration	IP Black model: 4 pairs of φ70 target positions + 10 arc targets; or IP Gold model: 1 pair of φ100 targets + 2 planar targets + 10 arc targets	8 pairs of φ70 target positions (4 pairs on the door sides are interchangeable with 2 pairs of φ100 targets); 10 arc targets or 2 linear ion sources can be installed on the middle sides
4	Pressure rise rate	≤ 0.3 Pa/hour (same for both models)
5	Chamber structure	Vertical cylindrical structure made of TISCO SUS304 stainless steel
6	Removable planar targets	Universal interface design, configurable as required
7	Pump-down speed	From atmosphere to 6.0×10⁻³ Pa in ≤ 12 minutes (empty chamber, cold state)
8	Approximate process cycle time	IP Gold: total time approx. 1.5 h	IP Black: total time approx. 2 h
9	Control panel type	Industrial PC (IPC)	Touchscreen
10	Program control	Fully automatic PLC control
11	Optional configurations	Anode-layer ion source; AF evaporation system
12	Applicable processes / coatings	IP Gold, IP Gunmetal, IP Black, IP Blue, IP Purple, Coffee Brown, Rose Gold, White Chrome, Black Chrome, and many other decorative coatings

PVD12512 Decorative Coating Equipment Main Technical Parameters and Configuration:

1. Vacuum Chamber Volume: φ1250*1200;

2. Workstations: 16 or 18, workpiece rotation diameter 160mm;

3. Targets and Arcs: Universal interface design, can be configured as needed;

4. Recommended Configuration: IP Black model with 4 pairs of 70 targets + 10 arc targets or IP Gold model with 1 pair of φ100 targets + 2 flat targets + 10 arc targets.

Our company is an enterprise engaged in the research, development, production, and sales of various vacuum application equipment. Our equipment is fully functional, possessing comprehensive development, design, manufacturing, and testing capabilities. In addition, our company has workshops for machining, welding, casting, assembly, and electrical work, as well as supporting facilities such as factory-run laboratories and research institutes, capable of meeting various needs and requirements.

Our company's products are mainly used for applying decorative coatings in various colors and functions, such as IP Black, IP Blue, IP Imitation Gold Furnace Gold, Rose Gold, IPG, and IPS, to watch straps, watch cases, eyeglass frames, mobile phone cases, and various hardware utensils. We also apply various hard and wear-resistant coatings to various cutting tools and molds. Since our inception, we have always adhered to industry standards, insisted on scientific innovation, and remained committed to a service-oriented philosophy, wholeheartedly dedicating ourselves to the research, development, manufacturing, and sales of PVD vacuum coating equipment.

1. Integrated Process Technology

Decorative coating equipment commonly combines multi-arc ion plating with magnetron sputtering. Ion plating provides high ionization rates and fast film formation with strong adhesion, while magnetron sputtering offers controllable deposition rates and easily adjustable film colors. The complementary advantages of both are the core design concept of decorative coating equipment.

2. Precise Color Control

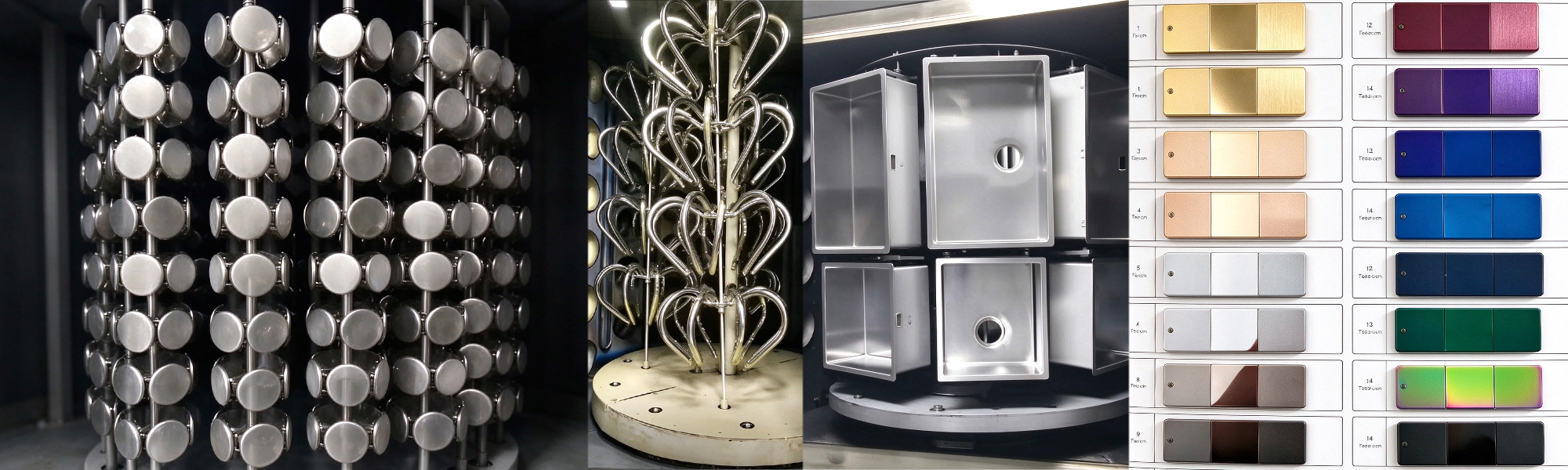

By adjusting target composition, reactive gas ratios, and bias voltage, the equipment can achieve a rich range of color effects. It can deposit various decorative coatings such as TiN (gold), CrN (silver-gray), ZrN (champagne gold), and TiCN (rose gold). Typical colors include gold, rose gold, champagne, gunmetal black, blue, and coffee, with pure and stable colors suitable for high-end product appearance decoration.

3. Excellent Film Performance

Decorative coating thickness typically ranges from 0.3 to 1.5 μm. The films offer strong adhesion, excellent corrosion resistance and wear resistance, high surface smoothness, and a strong metallic luster. They do not fade with long-term use and perform well against fingerprints and oxidation.

4. High Production Efficiency

The equipment adopts medium-to-large chamber designs that can process multiple workpieces simultaneously, meeting batch production needs. The fully automated control system can precisely set parameters such as arc source power, gas flow, bias voltage, and deposition time, with real-time monitoring and data recording functions to ensure color consistency and quality traceability for each batch.

5. Wide Range of Applications

Decorative coating equipment mainly serves 3C product housings (phones, tablets, laptops), smartwatches and metal watch bands, high-end eyeglass frames and jewelry, bathroom hardware (faucets, showerheads), and architectural decorative components.
