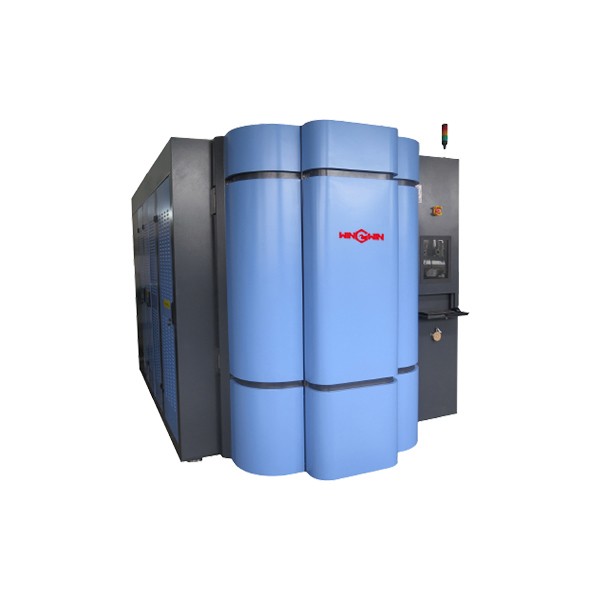

1180 Series DLC Coating Equipment

Batch Production
Large vacuum chamber of 1180×1100 mm, heavy-duty detachable turntable, maximum load capacity up to 1500 kg, suitable for batch production.

UBM Technology – Unbalanced Closed‑Field Magnetron Cathode
Controllable intense ion bombardment with high ion current, resulting in dense films, strong adhesion, and superior coating performance.

SS Technology – Smart Shutter
Electrically controlled automatic target shutters that completely eliminate impurities on the target surface, ensure film purity, prevent cross‑contamination between multiple targets, and support stable multilayer film deposition.

ALS Technology – Anode‑Layer Ion Source
Delivers very high ion current. Before coating, it performs strong ion etching cleaning on workpieces, thoroughly removing oxide layers and oil residues from the substrate surface. During coating, it provides ion‑assisted deposition, significantly improving coating‑substrate adhesion and solving the problem of coating peeling on tools and molds.

MCT Technology – Multi‑Coating Compatibility
Capable of producing DLC, GLC, WC/C, CrN, and various multilayer composite gradient coatings. It allows flexible combination of different coating processes, so one machine can cover the coating requirements for a wide range of parts, resulting in high equipment utilization.

APC Technology – Fully Automatic Program Control
The entire coating process sequence, power, gas flow, shutters, and ion sources are all controlled by program interlocking. Production can be started simply by calling up stored recipes. This eliminates human operating errors, ensuring excellent repeatability of coating thickness, hardness, and adhesion from batch to batch, enabling stable mass production.
